Brand: Ortofon
Features:

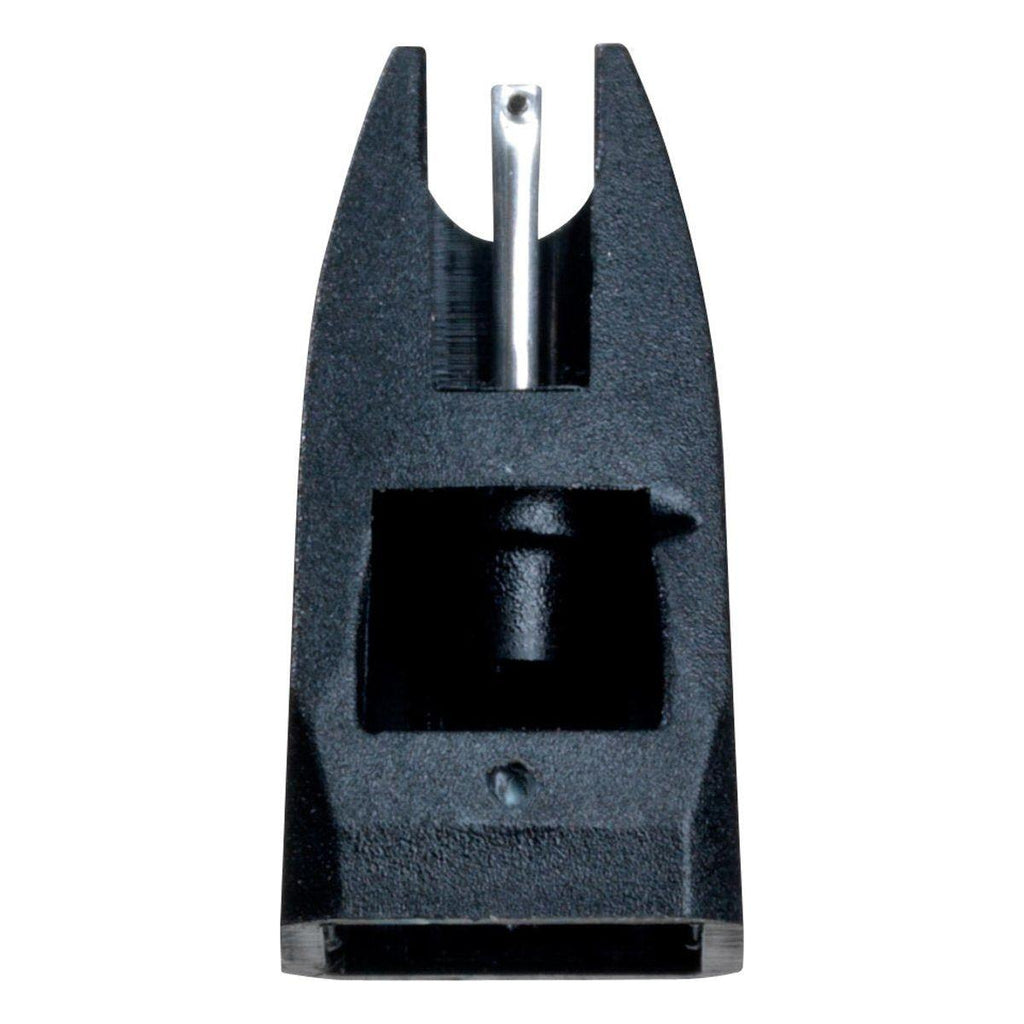

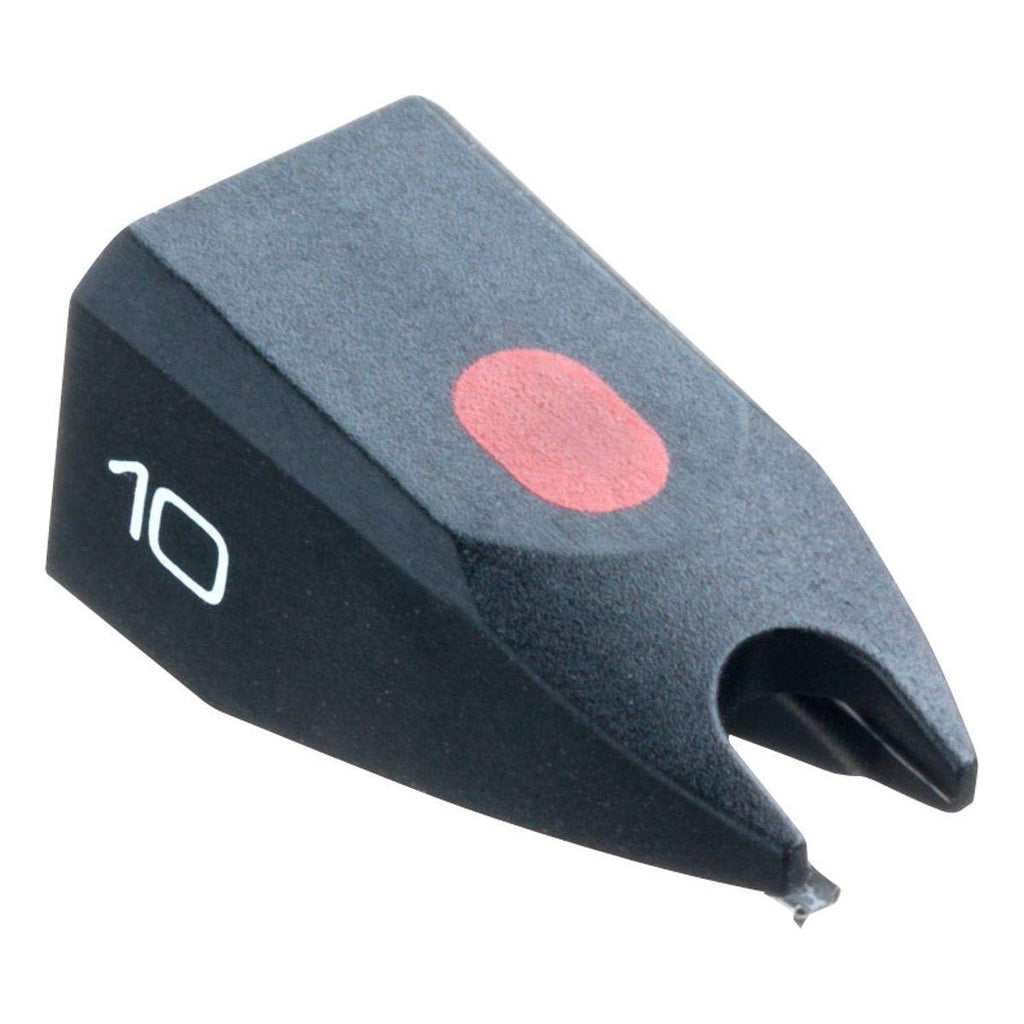

- Replacement Stylus for Ortofon OM 10 and Super OM 10
- Will fit the following Ortofon cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD
- Recommended for following cartridges: Super OM 10, OM 10, OMP 10, OMB 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD
- Stylus type - Elliptical
- Recommended tracking force is 1.5g
PartNumber: STYLUS 10
Details: Recommended for the following cartridges: Super OM 10 OM 10 OMP 10 (p-mount) OMB 10 (Bulk) OMT 10 LM 10 Concorde 10 Concorde EC 10 Concorde STD TM 10H LMB 12 SMB 12 LMA 12 What's in the Box Stylus 10 Replacement Stylus Specifications Frequency response 20 Hz - 20 kHz: 3 /- 3 dB Tracking ability at 315Hz at recommended tracking force: 60 m Compliance dynamic lateral: 20 m/mN Stylus type: Elliptical Stylus tip radius: r/R 8/18 m Tracking force range: 1.25-1.75 g (12.5-17.5 mN) Tracking force recommended: 1.5 g (15 mN) Tracking angle: 20 Stylus color: Black
UPC: 411378012272
EAN: 0411378012272
Model: Stylus 10
Binding: Electronics
Item Condition: New
In the Box
- Ortofon OM10 Replacement Stylus
- Limited 1-Year Manufacturer Warranty
