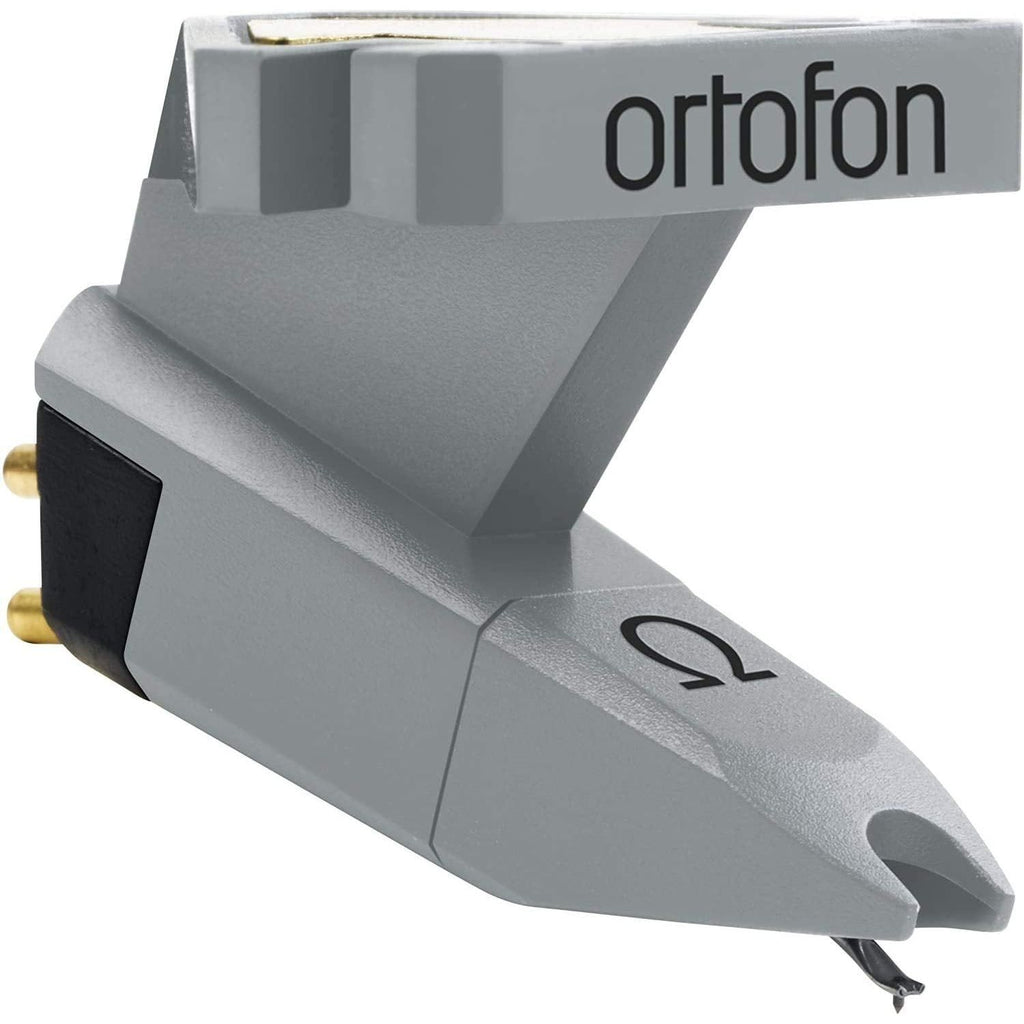

Ortofon OMEGA moving magnet cartridgeThe Omega is a standard-mount cartridge for true high-fidelity sound reproduction.It's a perfect match for standard USB turntables, fits a wide range of modern and vintage turntables. Omega uses a standard elliptical diamond and is a very reliable cartridge with a characteristic for Ortofon accurate sound.The Omega provides upgraded sound quality in a cost-effective package.Ortofon OMEGA Technical dataOutput voltage at 1000 Hz, 5cm/sec - 4 mVChannel balance at 1 kHz - 2 dBChannel separation at 1 kHz - 22 dBChannel separation at 15 kHz - 15 dBFrequency response - 20-21.000 HzStylus type - EllipticalStylus tip radius - r/R 8/18 µmTracking force range - 1,5-2,0 g (15-20 mN)Tracking force, recommended - 1,75 g (17,5 mN)Tracking angle - 20°Internal impedance, DC resistance - 750 OhmInternal inductance - 450 mHRecommended load resistanc - 47 kOhmCartridge weight - 5 g (additional weight incl.)
In the Box

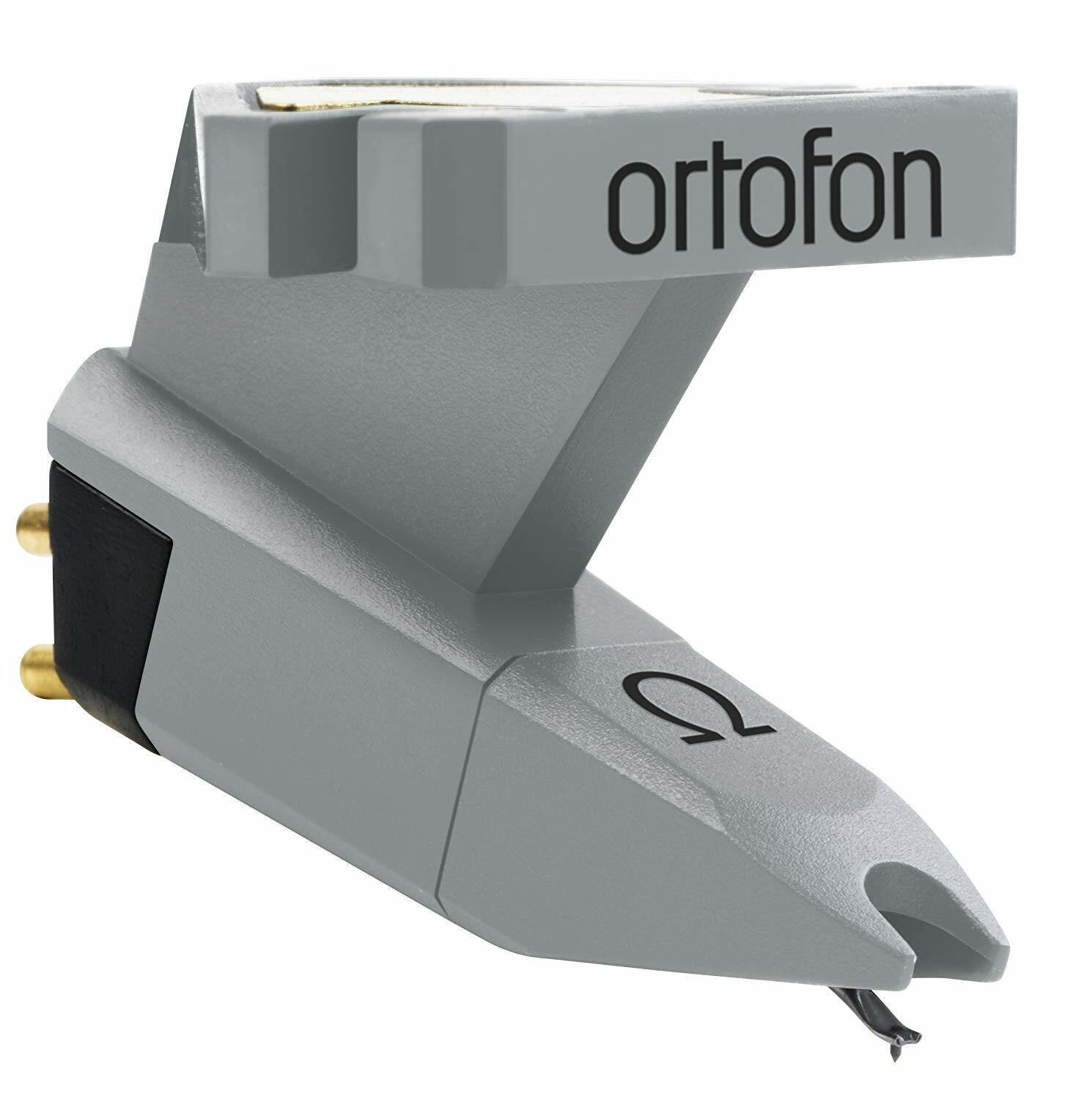

- Ortofon Omega 1e OM Single Budget elliptical stylus listening cartridge
- Limited 1-Year Manufacturer Warranty
