Need an acoustic guitar preamp and DI pedal with onboard EQ and tuner?

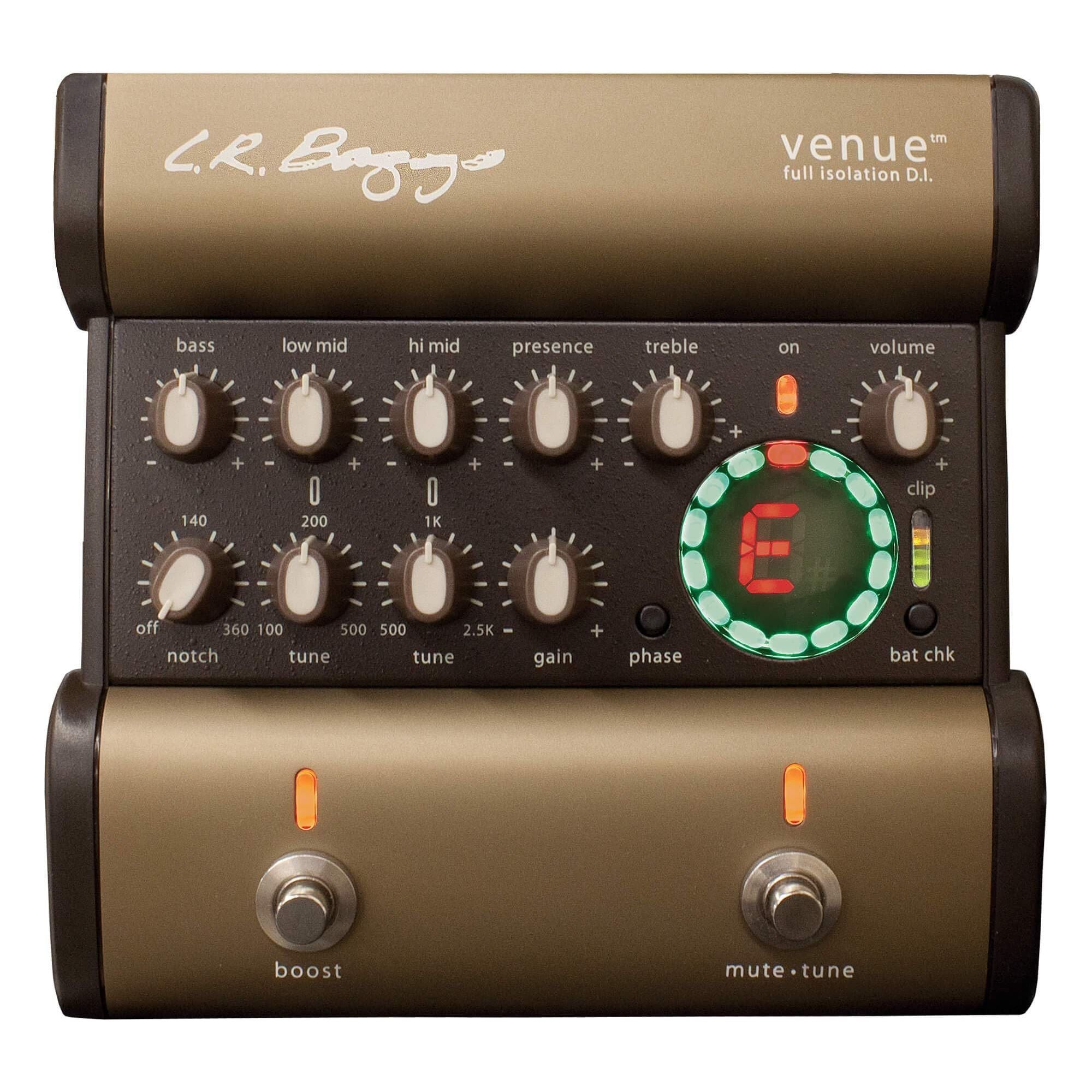

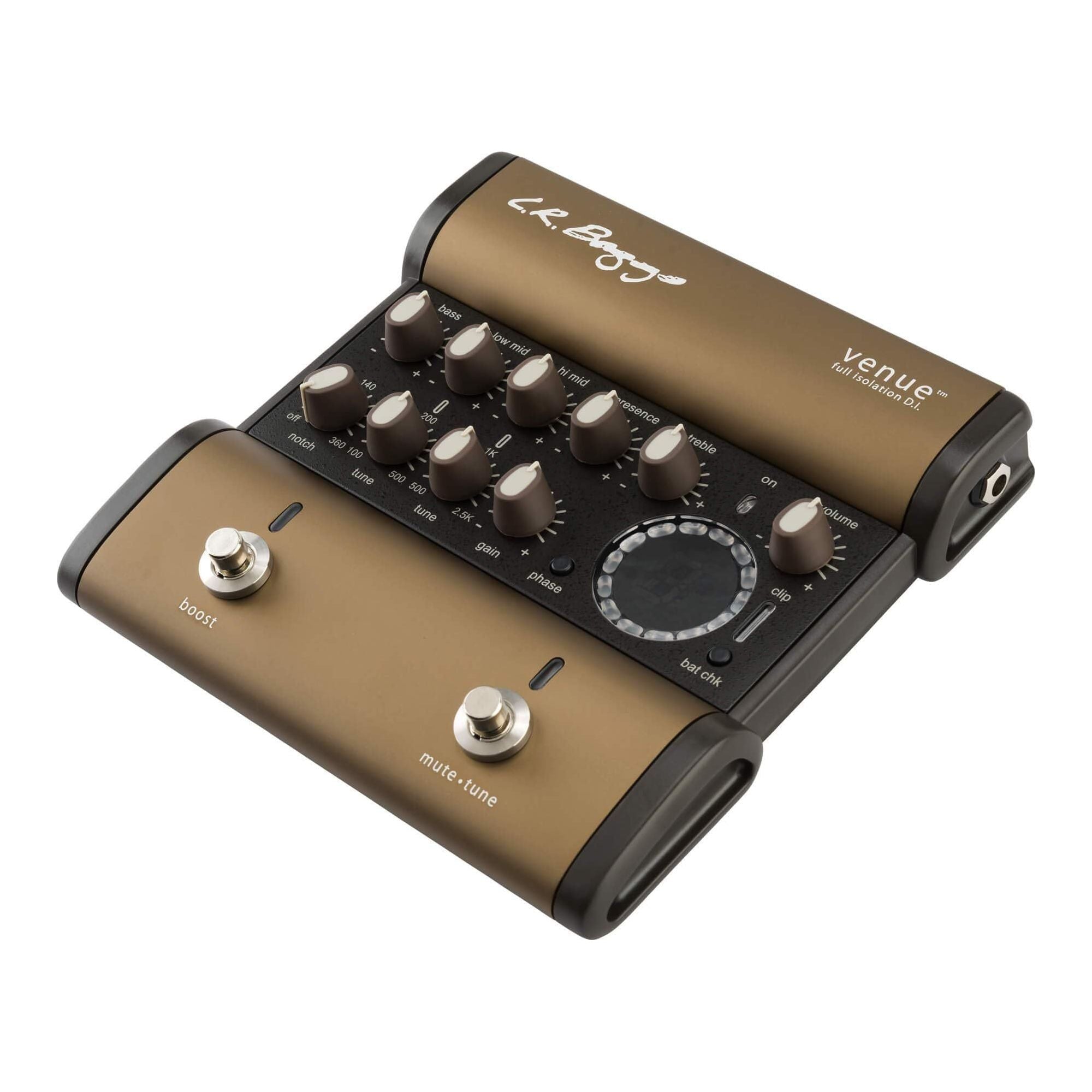

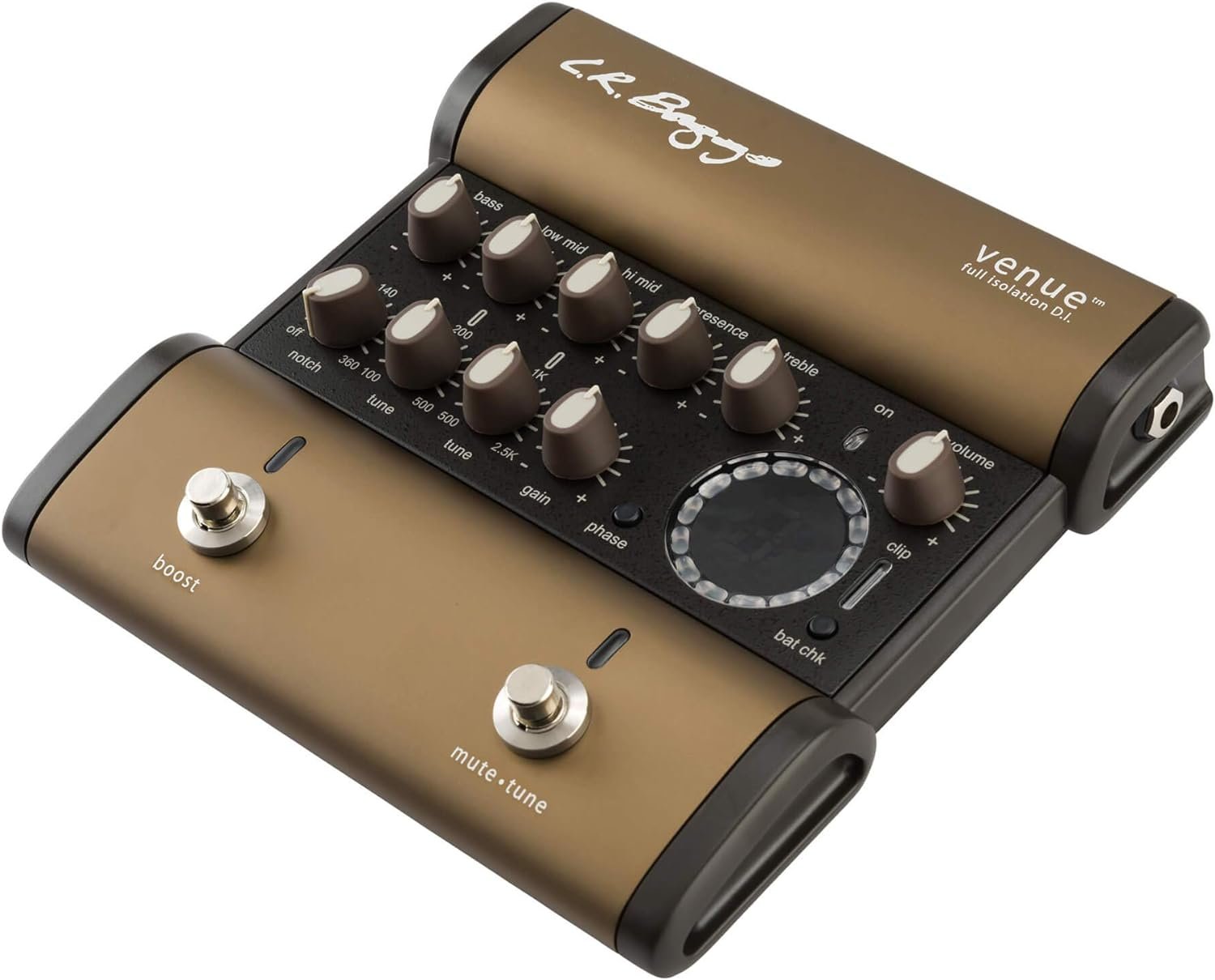

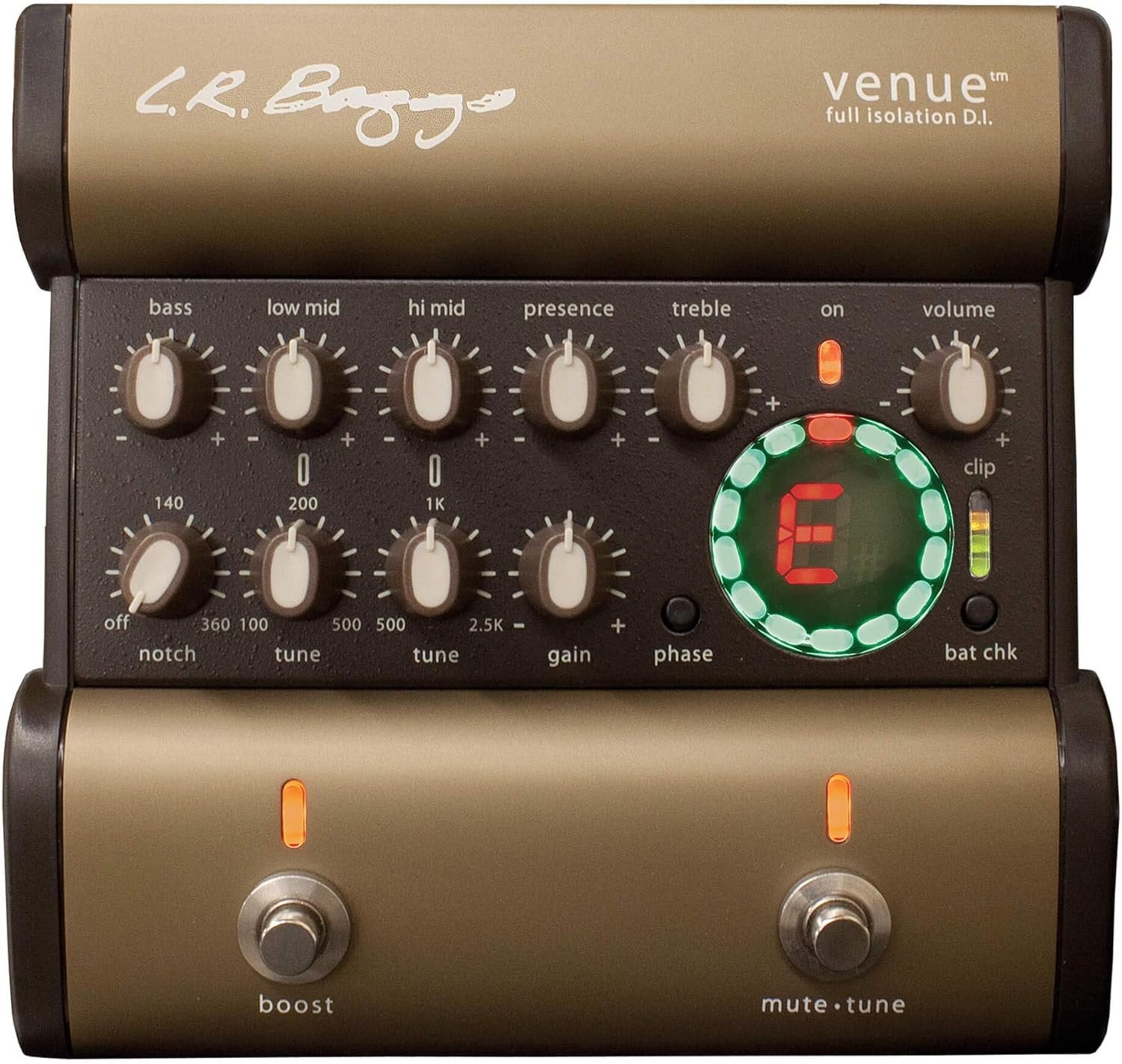

The LR Baggs Venue DI is an acoustic guitar preamp pedal that combines a preamp, direct box, equalizer, and tuner in a single unit. It supports both passive and active pickup systems and includes adjustable input gain. The pedal provides balanced XLR output using a transformer-coupled direct output and a 1/4-inch output for amplifiers.
The onboard 5-band EQ includes adjustable low-mid and high-mid frequency controls. A phase inversion switch allows adjustment of signal polarity. The pedal includes a chromatic tuner with mute function and LED display. A boost footswitch provides adjustable output level increase.

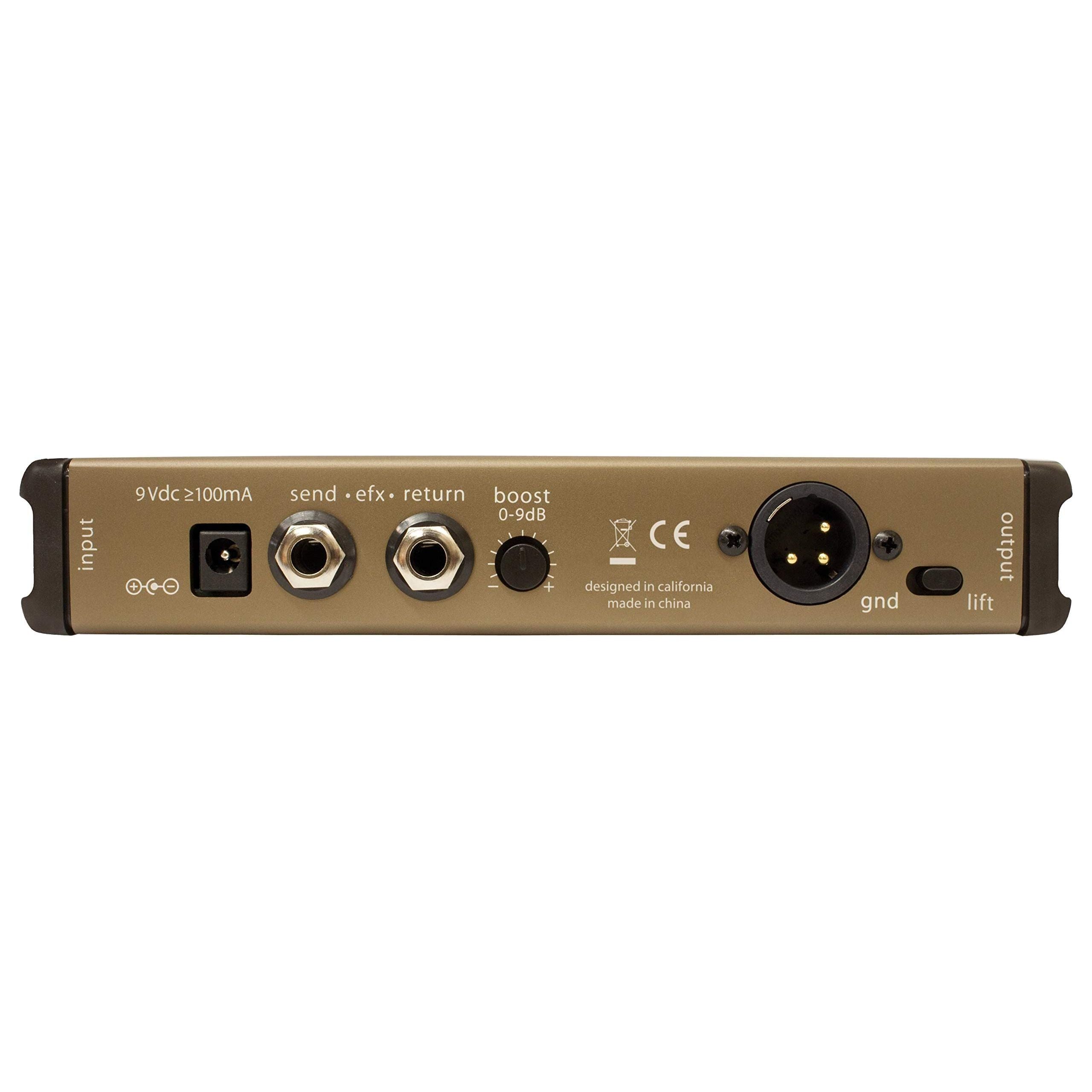

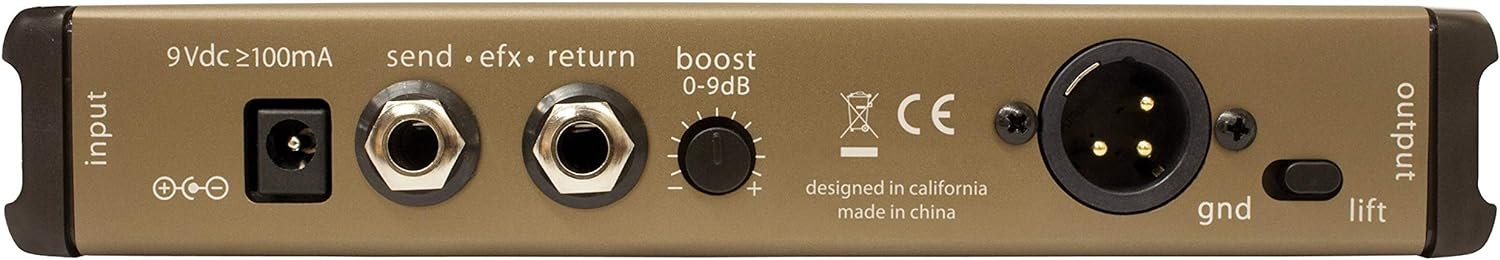

The Venue DI includes a series effects loop with send and return connections for integrating external effects. The unit operates using a 9V battery or compatible external power supply and includes a carrying case. It connects using standard instrument and XLR cables and is designed for acoustic guitar amplification systems.
COMBINED PREAMP DI AND TUNER: Integrates acoustic instrument preamp, direct box, and chromatic tuner in one pedal. FIVE-BAND EQ WITH SWEEPABLE MIDS: Includes 5-band equalizer with tunable low-mid and high-mid frequency controls. TRANSFORMER-COUPLED XLR OUTPUT: Balanced XLR DI output uses isolation transformer for connection to PA systems. INTEGRATED FOOTSWITCH BOOST AND MUTE: Footswitches provide signal boost and mute function for tuning and performance control. SERIES EFFECTS LOOP CONNECTIVITY: Separate send and return jacks allow connection of external signal processors.In the Box
- LR Baggs Venue DI Acoustic Guitar Preamp DI EQ and Tuner Pedal with FX Loop New
- Limited 1-Year Manufacturer Warranty
