From the Manufacturer It’s been a decade since the Whammy was introduced and
now it has a permanent place on every professional’s pedalboard. This is what
has made the Whammy a legend. Hit after hit, performance after performance,
the Whammy not only adds to your playing, it creates new sounds, feelings and
textures. The Whammy is simple – Take your guitar’s sound and pitch shift it
using a special algorithm, then control that pitch with an expression pedal.
So easy and so expressive that it takes your playing to a new world of quirky
squeals, monster dive bombs lower than any whammy bar and bends that can only
be found on other instruments. It’s no wonder why this single pedal is
legendary. 6 Whammy modes including famous 2 Octave Up as heard on 100’s of
songs!10 Harmony Bend modes including 2nd Up to 3rd Up simulating pedal steel
bends!Expression pedal controls dive bombs and bendsCutting–edge pitch
detection engine designed specifically for guitar delivers fast accurate
shifting!MIDI In & Out/Thru to control pitch bends via cc’sModes Whammy Modes2
Oct Up - Bends your input note two octaves up. 1 Oct Up - Bends your input
note one octave up. 1 Oct Dn - Bends your input note one octave down. 2 Oct Dn
- Bends your input note two octaves down. Dive Bomb - Bends your input note
three octaves down. Drop Tune - Bends your input note two semi-tones down with
a reversed pedal action.Harmony Bend Modes2nd Up/3rd Up - Bends the harmony
between a second (toe up) and a third (toe down) above the input note. Min 3rd
Up/3rd Up - Bends the harmony between a minor third (toe up) and a Major third
(toe down) above the input note. 3rd Up/4th Up - Bends the harmony between a
third (toe up) and a fourth (toe down) above the input note. 4th Up/5th Up -
Bends the harmony between a fourth (toe up) and a fifth (toe down) above the
input note. 5th Up/6th Up - Bends the harmony between a fifth (toe up) and a
sixth (toe down) above the input note. 4th Up/7th Up - Bends the harmony
between a fourth (toe up) and a seventh (toe down) above the input note. 4th
Dn/3rd Dn - Bends the harmony between a fourth (toe up) and a third (toe down)
below the input note. 5th Dn/4th Dn - Bends the harmony between a fifth (toe
up) and a fourth (toe down) below the input note. Oct Up/Oct Dn - Bends the
harmony between one octave below (toe up) and one octave above (toe down) the
input note.Detune ModesShallow - The signal is shifted slightly out of tune
from the original pitch and mixed with the original. Deep - The signal is
shifted substantially out of tune from the input signal and mixed with the
original.SpecificationsDimensions: 8” (L) x 6.3” (W) x 2.5” (H) Weight: 3.5
lbs. (1.6 kg) Sample Rate: 46.875 kHz Frequency Response Dry: 20 Hz to 20kHz
Frequency Response Wet: 20 Hz to 12kHz Signal to Noise Ratio: Greater than
-95dB (A weighted); ref = max level, 22 kHz bandwidth THD: 0.006% (1kHz); ref
= 1dBu w/ unity gain A/D Conversion: 24 bit D/A Conversion: 24 bit Max Input:
+8.8 dBu Max Output: +8.8 dBu
now it has a permanent place on every professional’s pedalboard. This is what
has made the Whammy a legend. Hit after hit, performance after performance,
the Whammy not only adds to your playing, it creates new sounds, feelings and
textures. The Whammy is simple – Take your guitar’s sound and pitch shift it
using a special algorithm, then control that pitch with an expression pedal.
So easy and so expressive that it takes your playing to a new world of quirky
squeals, monster dive bombs lower than any whammy bar and bends that can only
be found on other instruments. It’s no wonder why this single pedal is
legendary. 6 Whammy modes including famous 2 Octave Up as heard on 100’s of
songs!10 Harmony Bend modes including 2nd Up to 3rd Up simulating pedal steel
bends!Expression pedal controls dive bombs and bendsCutting–edge pitch
detection engine designed specifically for guitar delivers fast accurate
shifting!MIDI In & Out/Thru to control pitch bends via cc’sModes Whammy Modes2
Oct Up - Bends your input note two octaves up. 1 Oct Up - Bends your input
note one octave up. 1 Oct Dn - Bends your input note one octave down. 2 Oct Dn
- Bends your input note two octaves down. Dive Bomb - Bends your input note
three octaves down. Drop Tune - Bends your input note two semi-tones down with
a reversed pedal action.Harmony Bend Modes2nd Up/3rd Up - Bends the harmony
between a second (toe up) and a third (toe down) above the input note. Min 3rd
Up/3rd Up - Bends the harmony between a minor third (toe up) and a Major third
(toe down) above the input note. 3rd Up/4th Up - Bends the harmony between a
third (toe up) and a fourth (toe down) above the input note. 4th Up/5th Up -
Bends the harmony between a fourth (toe up) and a fifth (toe down) above the
input note. 5th Up/6th Up - Bends the harmony between a fifth (toe up) and a
sixth (toe down) above the input note. 4th Up/7th Up - Bends the harmony
between a fourth (toe up) and a seventh (toe down) above the input note. 4th
Dn/3rd Dn - Bends the harmony between a fourth (toe up) and a third (toe down)
below the input note. 5th Dn/4th Dn - Bends the harmony between a fifth (toe
up) and a fourth (toe down) below the input note. Oct Up/Oct Dn - Bends the
harmony between one octave below (toe up) and one octave above (toe down) the
input note.Detune ModesShallow - The signal is shifted slightly out of tune
from the original pitch and mixed with the original. Deep - The signal is
shifted substantially out of tune from the input signal and mixed with the
original.SpecificationsDimensions: 8” (L) x 6.3” (W) x 2.5” (H) Weight: 3.5
lbs. (1.6 kg) Sample Rate: 46.875 kHz Frequency Response Dry: 20 Hz to 20kHz
Frequency Response Wet: 20 Hz to 12kHz Signal to Noise Ratio: Greater than
-95dB (A weighted); ref = max level, 22 kHz bandwidth THD: 0.006% (1kHz); ref
= 1dBu w/ unity gain A/D Conversion: 24 bit D/A Conversion: 24 bit Max Input:
+8.8 dBu Max Output: +8.8 dBu
In the Box

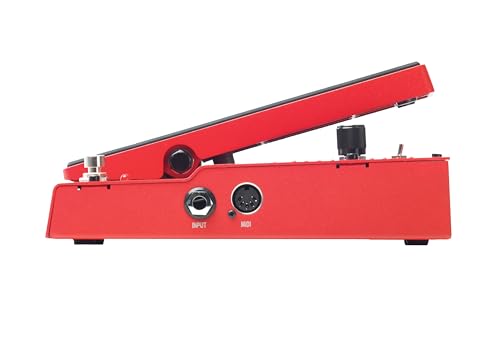

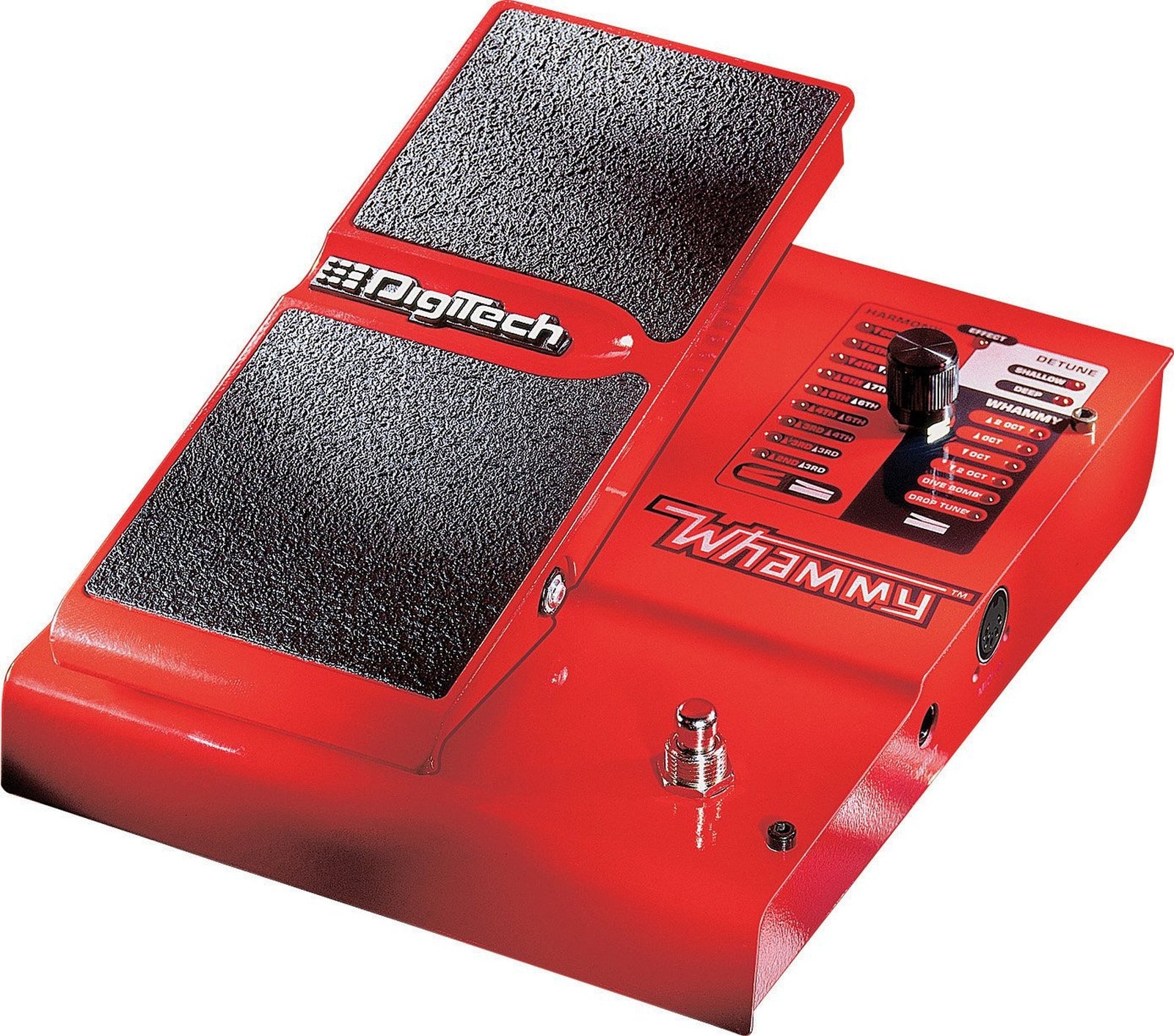

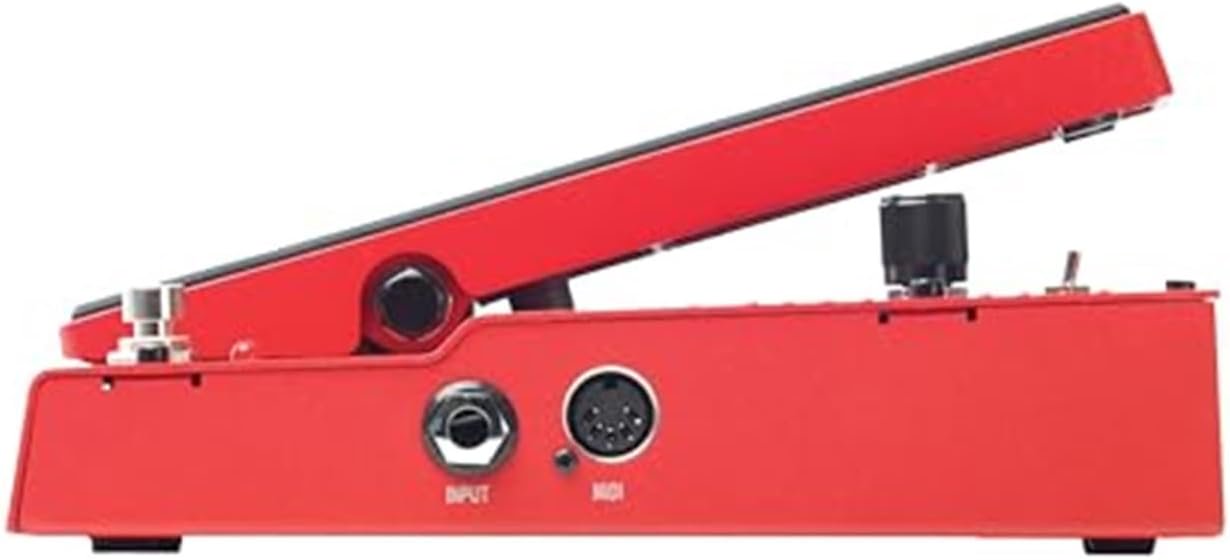

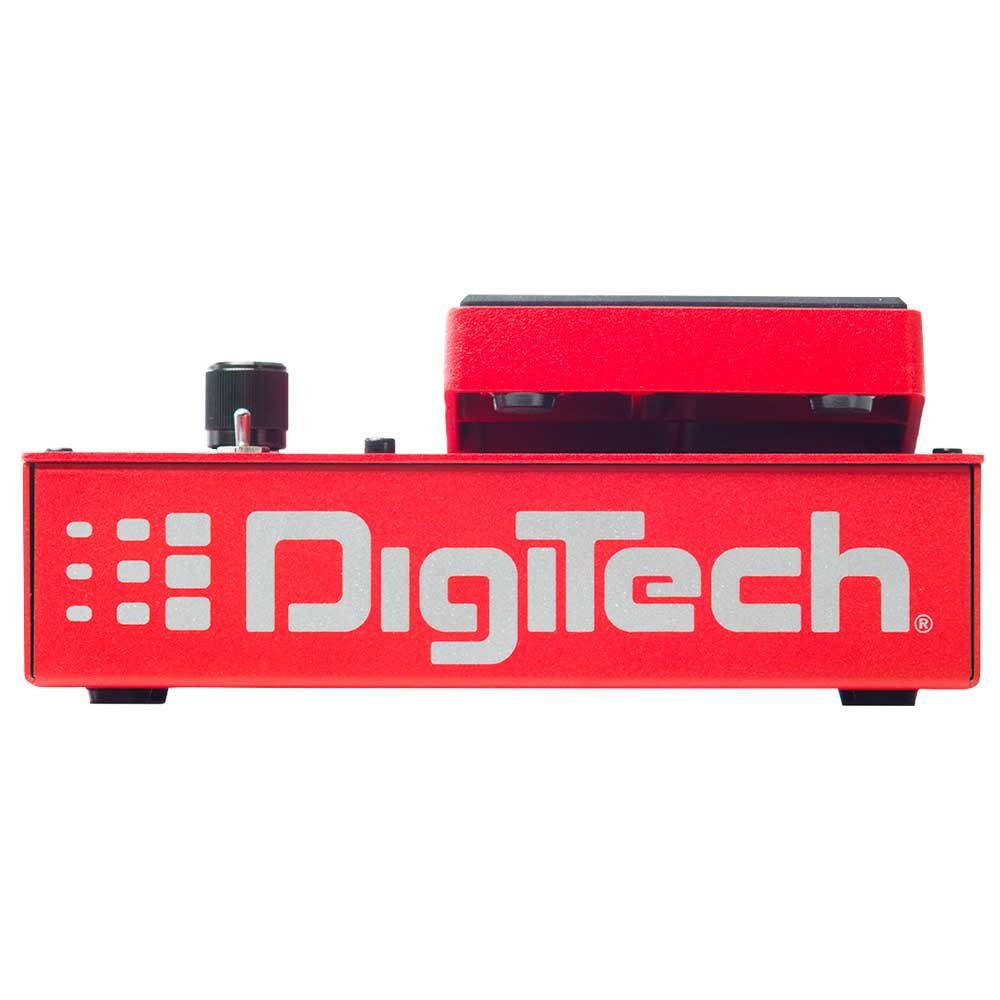

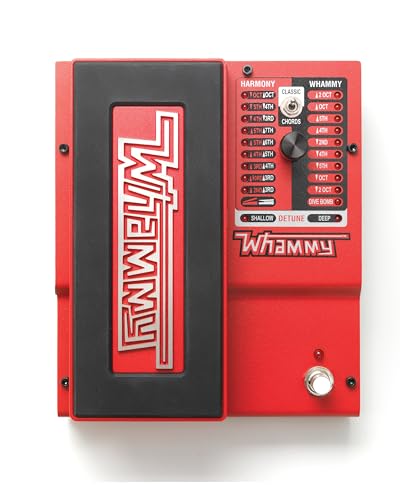

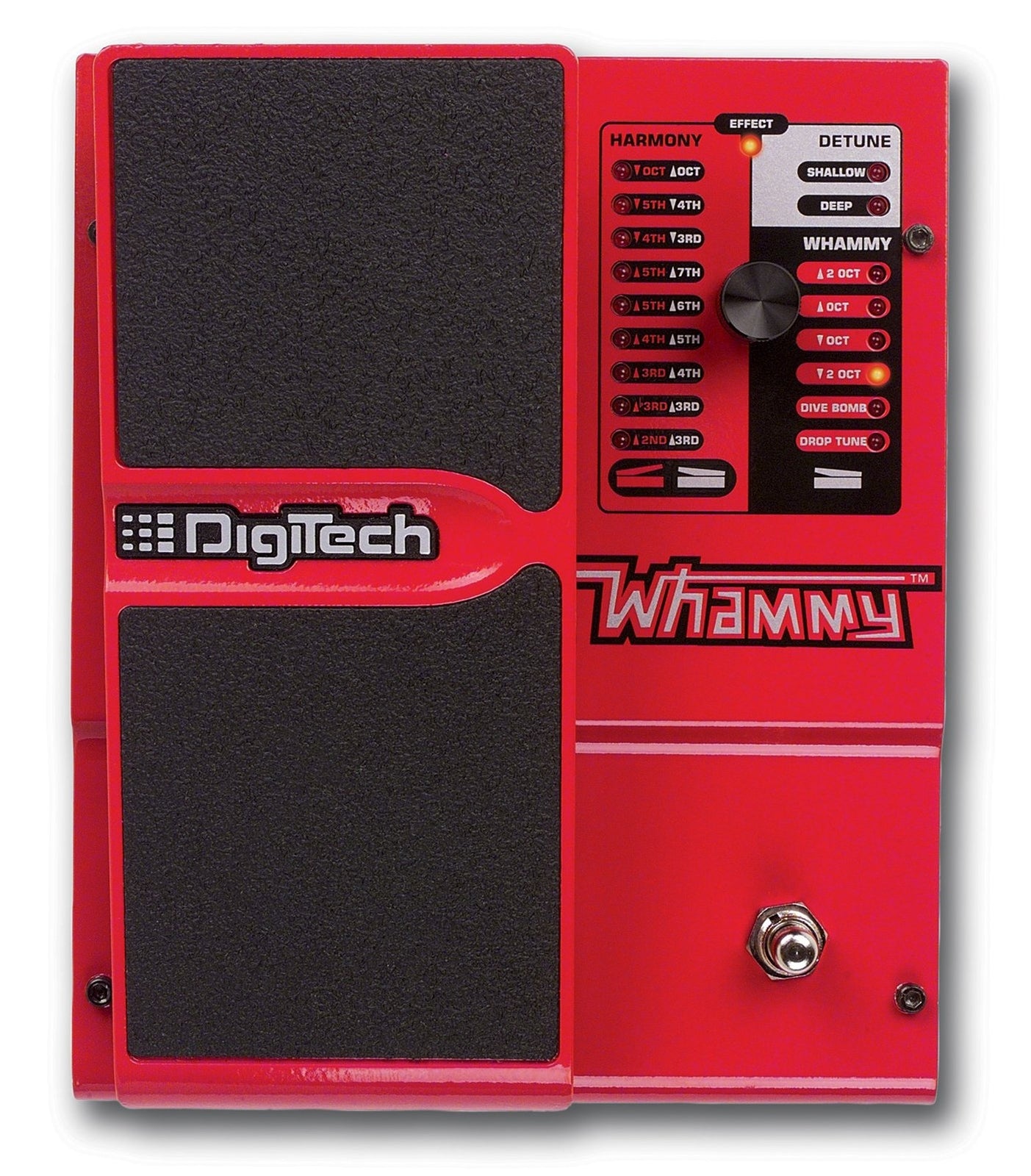

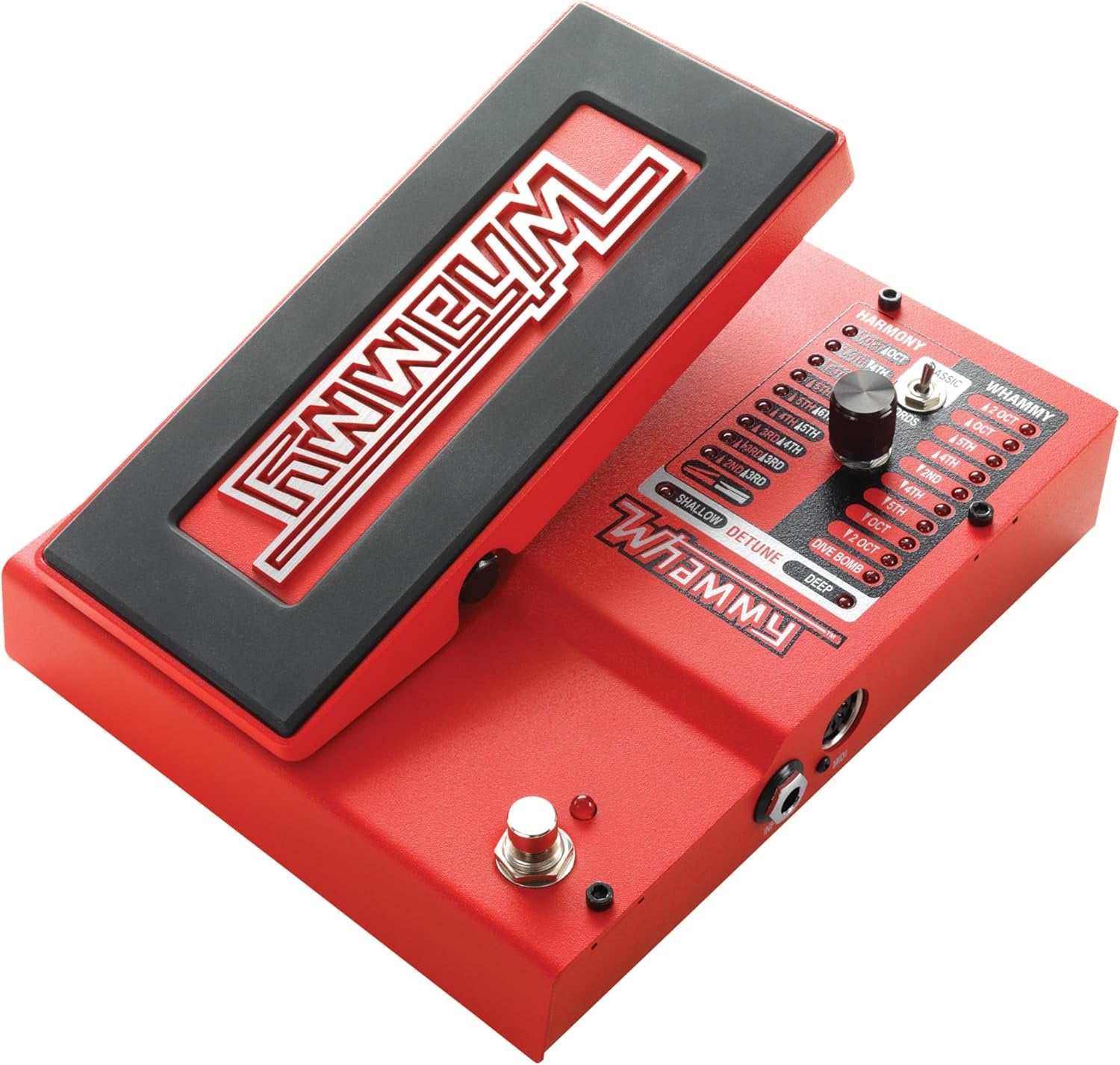

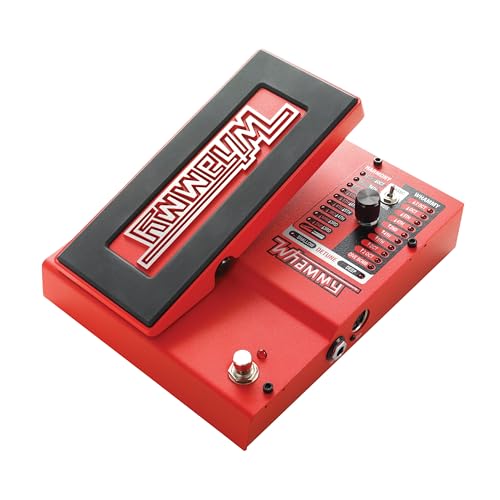

- DigiTech Whammy Pedal Re-issue with MIDI Control
- Limited 1-Year Manufacturer Warranty
