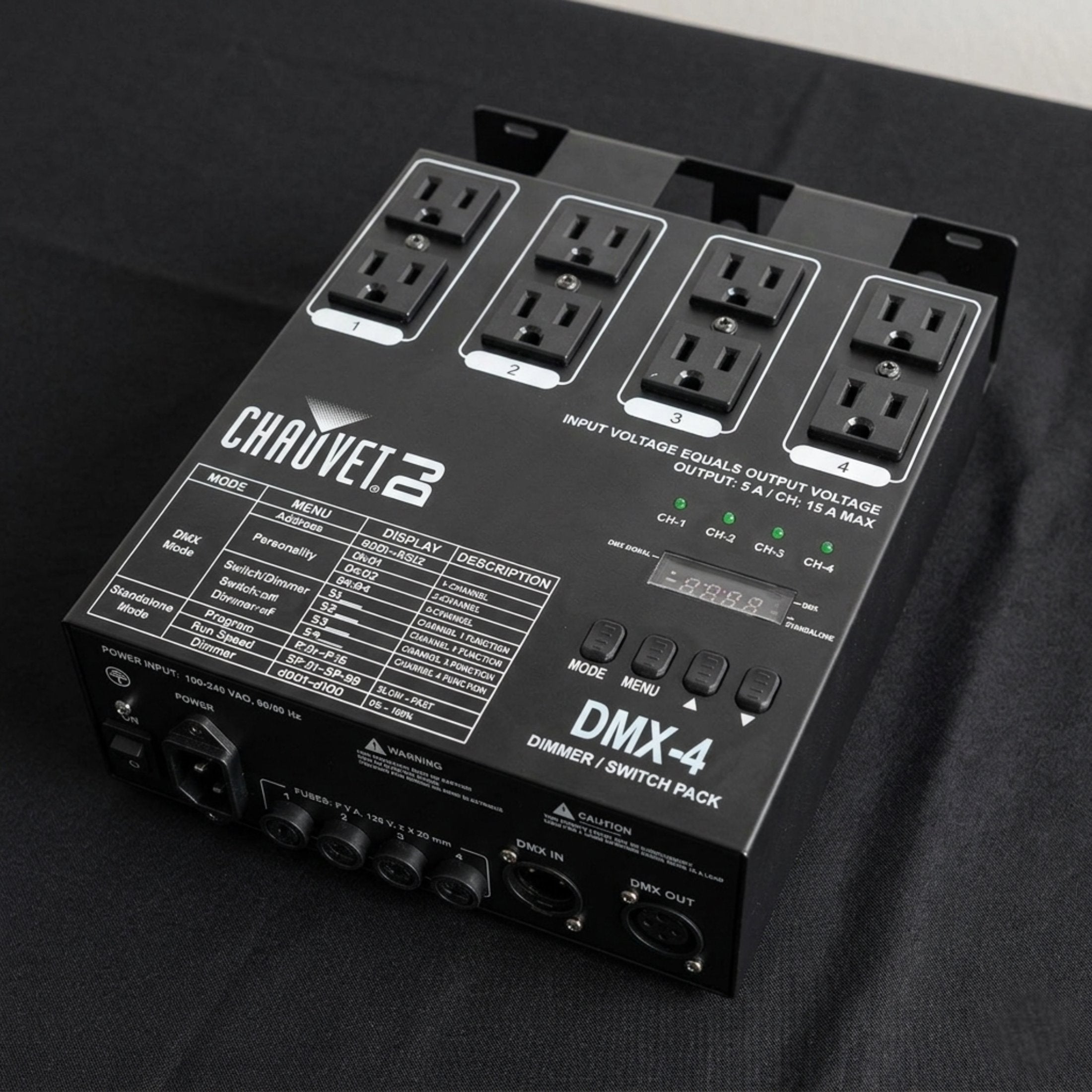

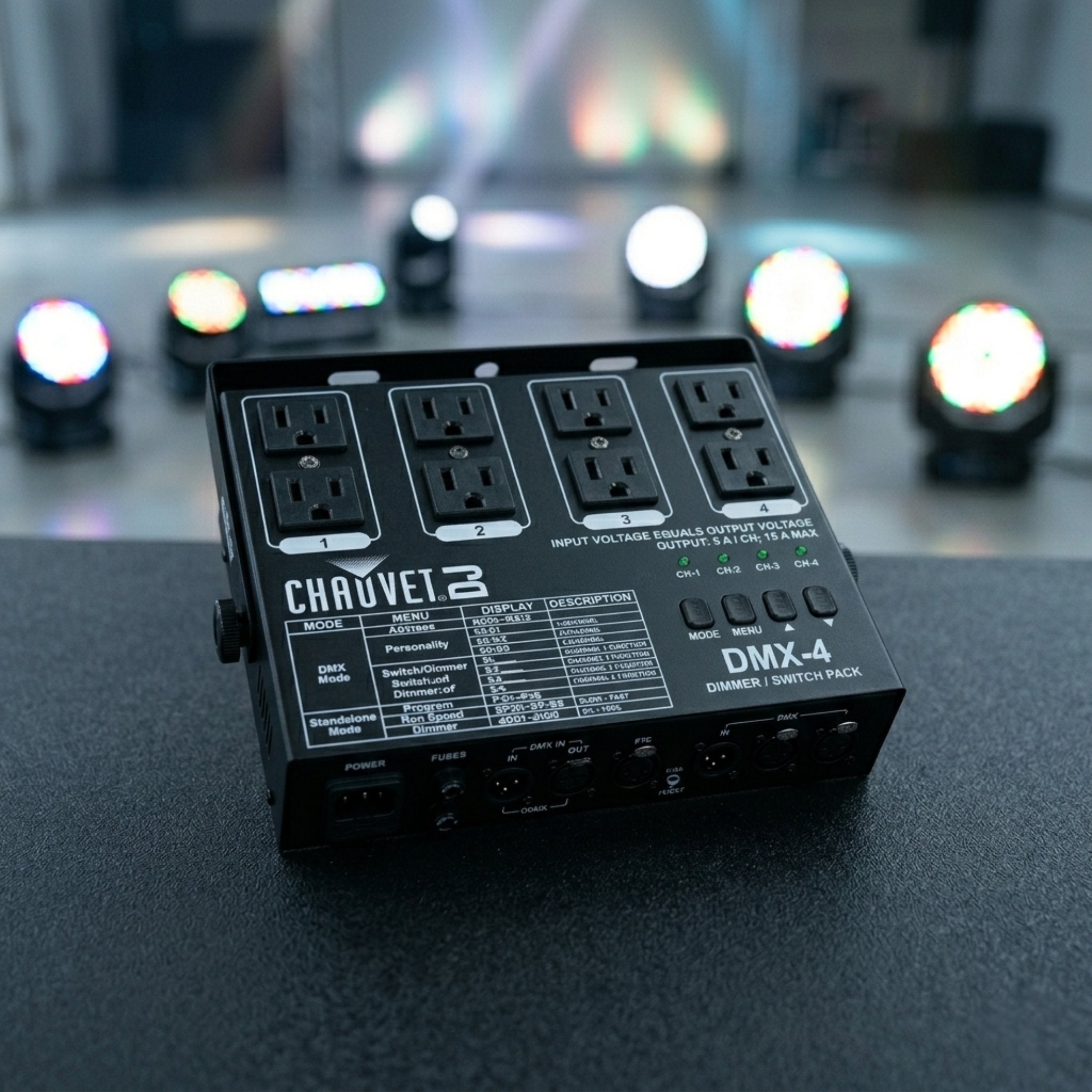

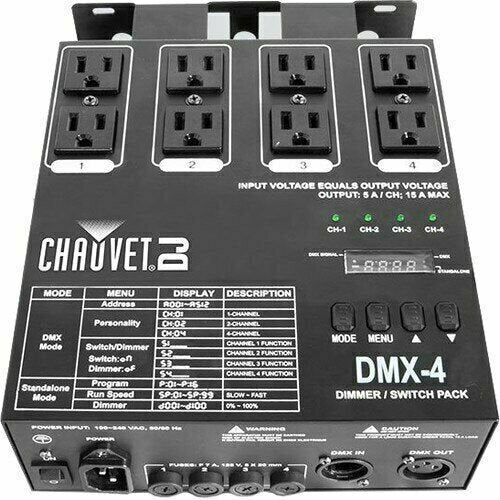

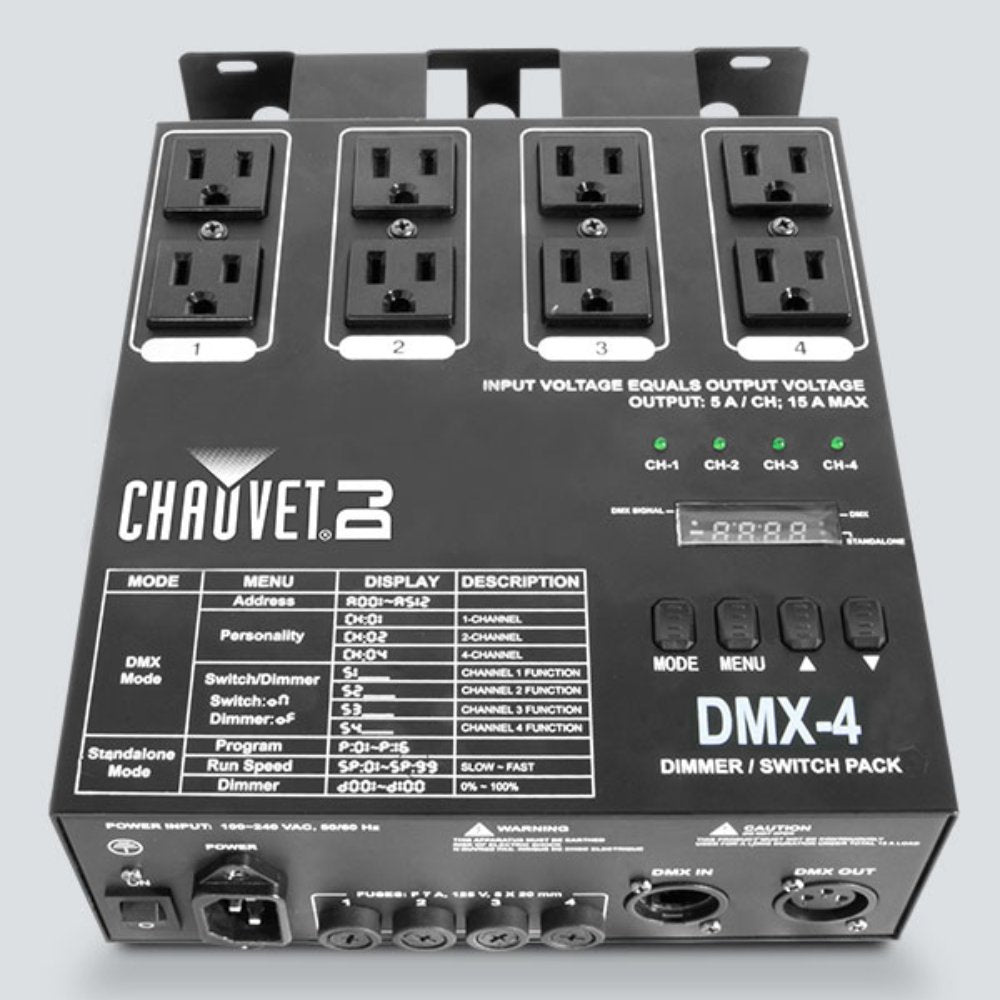

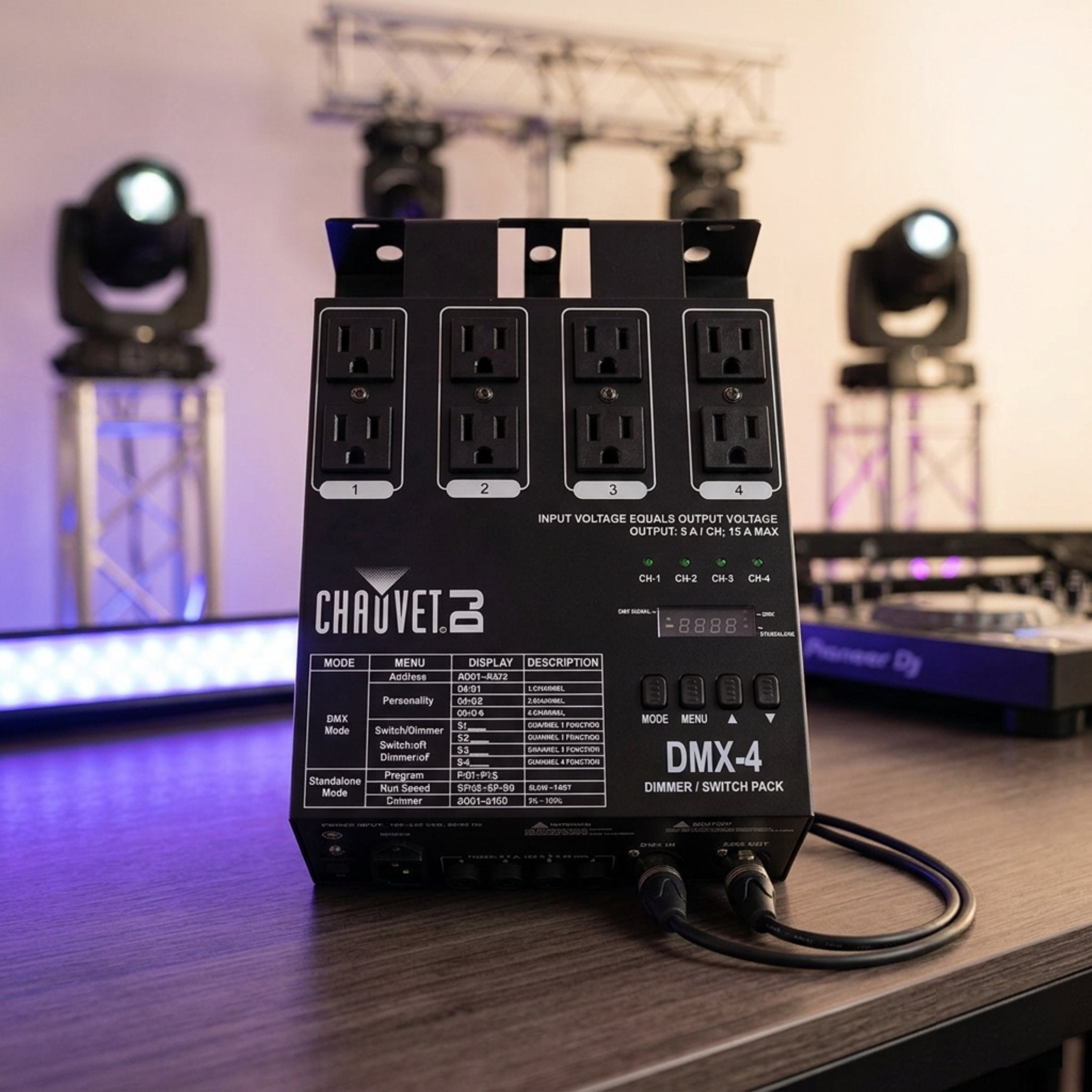

Chauvet DMX4 4-Channel DMX-512 dimmer/relay pack

It’s a 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering. Each of the 4 sets of outlets (duplex) can be set to any DMX address and independently set as a dimmer or relay. Sixteen user-selectable chase patterns make programming a breeze.

• 4-channel dimmer/switch pack with up to 5 amps per channel (15A max)

• Auto on/off when DMX is detected or removed

• Provides DMX control for on/off or dimming to non-DMX fixtures

• Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures

• Custom looks at your fingertips with 16 built-in, configurable chases

• Easy control using standalone mode or DMX control

• Increase flexibility by setting each channel as a dimmer or switch

• Control up to eight units simultaneously with four duplex outlets

• Monitor the status of each channel with separate LED indicators

• Generate a synchronized show using easily accessible automated programs, built-in automated programs

• Great control without DMX using automated programs with adjustable speeds and dimmer levels

The Chauvet DMX4 4-Channel DMX-512 dimmer/relay pack is designed to offer advanced control capabilities and unmatched reliability. Here are the key features that set it apart:

• Four-channel dimming: With its four individual channels, this dimmer/relay pack allows you to control the brightness of up to four lighting fixtures independently. This flexibility enables you to create stunning lighting effects and tailor the ambiance to suit any performance or event.

• DMX-512 compatibility: The DMX-512 protocol ensures seamless communication between the dimmer/relay pack and your lighting console or controller. This standardized interface guarantees accurate and synchronized control, eliminating any potential glitches or delays.

• Relay mode: In addition to dimming, the DMX4 pack offers relay functionality, enabling you to switch lighting fixtures on or off instantly. This feature is particularly useful for creating dramatic lighting effects or managing power distribution efficiently.

• Compact and durable design: The DMX4 pack is built to withstand the rigors of the live entertainment industry. Its compact size makes it easy to integrate into any setup, while its robust construction ensures long-lasting performance even in demanding environments.

• LED indicators: The pack is equipped with LED indicators for each channel, providing real-time feedback on the status of your lighting fixtures. This visual feedback allows for quick troubleshooting and ensures seamless operation during performances or events.

To give you a comprehensive overview, here are the detailed specifications of the Chauvet DMX4 4-Channel DMX-512 dimmer/relay pack:

• DMX Channels:1, 2, or 4
• DMX Connectors:3-pin XLR
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Weight:5 lb (2.2 kg)
• Dimensions:8.3 x 7.7 x 2.8 in (210 x 194 x 70 mm)
• Approvals:CE
